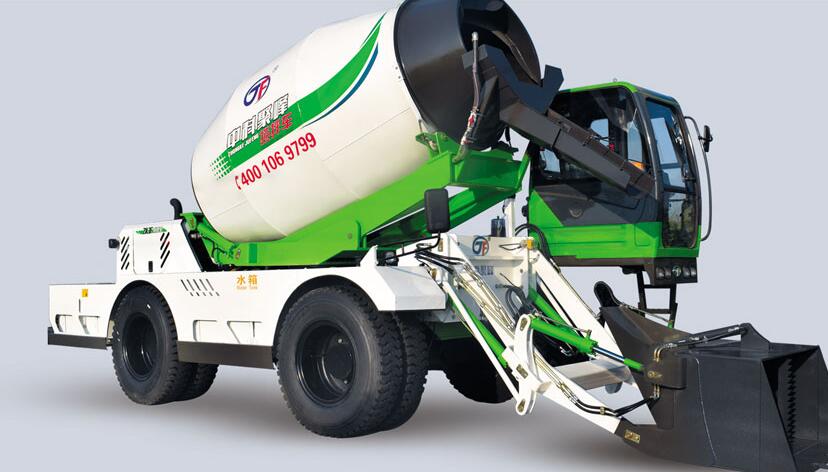

中科聚峰攪拌車取力裝置你了解嗎？
中科聚峰攪拌車采用主機受力。取力裝置的作用是通過操作取力開關，將發動機動力移出，通過液壓系統驅動混合缸。攪拌筒在進料和輸送的過程中是向正方向旋轉的，便于混凝土與來料的混合。讓我們仔細看看。
The main machine of Zhongke Jufeng mixer is stressed. The function of the power take-off device is to move the engine power out by operating the power take-off switch and drive the mixing cylinder through the hydraulic system. The mixing drum rotates in the positive direction in the process of feeding and conveying, which is convenient for the mixing of concrete and incoming materials. Let's take a closer look.
液壓系統
Hydraulic system
由功率提取器(一般為后置全功能功率提取器)取出的發動機功率轉換為液壓能(位移和壓力)，再由電機輸出為機械能(速度和扭矩)，為混合缸的旋轉提供動力。
The engine power taken out by the power extractor (generally the rear full-function power extractor) is converted into hydraulic energy (displacement and pressure), and then the motor outputs mechanical energy (speed and torque) to provide power for the rotation of the mixing cylinder.
減速機
Reducer
當液壓系統中電機輸出速度減慢后，將其傳遞到混合缸中。
When the output speed of the motor in the hydraulic system slows down, it is transmitted to the mixing cylinder.
運行機制
operating mechanism
A.控制攪拌桶的旋轉方向，使其在加料和輸送過程中向正方向旋轉，在出料過程中向反方向旋轉。
A. Control the rotation direction of the mixing drum to make it rotate in the positive direction during the feeding and conveying process and in the reverse direction during the discharging process.
B.控制攪拌桶的速度。
B. Control the speed of mixing drum.
以上是中科聚峰攪拌車取力裝置的介紹。這些設備在運行過程中需要仔細檢查，以檢查它們是否處于正常運行狀態。另外，在操作過程中也要注意機器的保養。
The above is the introduction of the power take-off device of Zhongke Jufeng mixer. These devices need to be checked carefully during operation to check whether they are in normal operation. In addition, pay attention to the maintenance of the machine during operation.
